Fujitsu GeneralAOUH24KWAS3

Fujitsu General · Multi-Zone

Fujitsu AOUH24KWAS3 24,000 BTU 3-Zone Multi

AOUH24KWAS3

~$2,709approximate retailer price at last check, equipment only

Replaces the Fujitsu AOU24RLXFZ 24,000 BTU 2-3 Zone Multi.

BTU/h
24k
Volts
230
Zones
3
SEER2
23
HSPF2
10.5
Heats to
5°F
Refrig.
R-32
Covers
—
Wi-Fi
Add-on

Best forTwo- or three-room retrofits in mild to moderate climates where a Fujitsu dealer quote comes in under the Mitsubishi or Daikin multi equivalent.

Overview

Few 24k multis take as wide a choice of indoor units: this R-32 Airstage condenser runs two or three heads from wall, slim-duct, mid-static duct and compact-cassette units. Dealers list it as the replacement for the discontinued AOU24RLXFZ, which did the same job on R-410A. With wall heads it carries an AHRI rating of 23 SEER2 and 10.5 HSPF2; the old unit's 18 SEER / 9.5 HSPF were pre-2023 ratings, so the numbers don't compare directly. It is also on the NEEP cold-climate list, at 19,200 BTU of maximum heat at 5°F against 24,000 rated at 47°F, about 80%. Fujitsu still rates heating operation only down to 5°F, though the submittal says there is no low-temperature cutout and it keeps running below that at untested capacity. Buyers who need certain output below 5°F should look at the extra-low-temp AOUH24KWAH3, which runs to -15°F. The multi-zone tradeoffs still apply: one compressor serves every room, and a single small head calling alone can make it cycle.

  • 23 SEER2 / 10.5 HSPF2 with wall heads
  • 19,200 BTU max heat at 5°F (NEEP)
  • Up to 3 heads, 164 ft total line set

Cold-weather output

At 5°F it still makes 80% of its rated heat, according to the certified NEEP listing for this pairing. Fujitsu General rates it to keep running down to 5°F.

47°F32°F17°F5°F24.0k19.2k
COP at 5°F
2.04
Refrigerant
R-32
AHRI cert.
215447687
ENERGY STAR cold climate
Yes

Pairing: AOUH24KWAS3 with non-ducted heads. From NEEP's ccASHP list; a different head or condenser posts different numbers.

Strengths and catches

Strengths

  • +Listed by NEEP as cold-climate: 19,200 BTU at 5°F, about 80% of its 24,000 BTU rating
  • +23 SEER2 / 10.5 HSPF2 with non-ducted heads (19.5 / 9.5 all ducted, 21 / 10 mixed)
  • +Mixes wall, slim-duct, mid-static duct and compact-cassette heads on one condenser
  • +164 ft total line set, 82 ft per zone, for spread-out room layouts
  • +Lower-GWP R-32 refrigerant on a current platform

Catches

  • −Price covers the outdoor unit only; three heads and installation come on top
  • −Rated heating range stops at 5°F; colder climates need the AOUH24KWAH3 extra-low-temp model
  • −Fujitsu won't warranty units bought online, so it is a dealer-channel purchase
  • −One compressor failure takes every connected room offline
  • −Wi-Fi is a per-head accessory adapter, not built in
  • −A small head calling by itself can short-cycle the condenser and dehumidify poorly

Questions buyers ask

Does the AOUH24KWAS3 replace the AOU24RLXFZ?+

Yes. Dealers mark the AOU24RLXFZ discontinued and names the AOUH24KWAS3 as its replacement. It is the same idea, a 24k condenser for up to three zones, moved to R-32 refrigerant and Fujitsu's Airstage indoor-unit lineup. Your old RLF-series heads won't necessarily carry over, so check compatibility with your installer.

Which indoor units can I connect?+

Fujitsu lists wall-mount, slim duct, mid-static duct and compact cassette heads as compatible, up to three of them. Total connected capacity can run up to 130% of the outdoor unit, roughly 14,000 to 31,000 BTU. Efficiency depends on the mix: 23 SEER2 with all wall heads, 19.5 with all ducted, 21 mixed.

Can it heat my house through the winter?+

It depends how cold you get. NEEP lists 19,200 BTU of maximum heat at 5°F, about 80% of its 47°F rating, and Fujitsu rates heating operation down to 5°F. The submittal says it has no low-temperature cutout and keeps running below that, but capacity there isn't tested. If your design temperature is below 5°F, the AOUH24KWAH3 extra-low-temp version operates to -15°F and includes a base-pan heater.

Can I buy it online and still get the warranty?+

No. Fujitsu's current warranty excludes any unit bought on the Internet or through liquidation or closeout sales, and requires a licensed contractor install. Bought and installed through a dealer, it carries 5 years on parts and 7 on the compressor. Registering within 60 days raises both to 10 years, and a Fujitsu Elite Contractor install raises them to 12.

Should I get one multi or separate single-zone units?+

One multi means one outdoor unit, which helps when wall space or a pad location is scarce. But one compressor serves every room, so a failure takes them all down. A single small head running alone can also make the condenser short-cycle. Two or three single-zone systems cost more up front but avoid both problems, so price it both ways.

Daikin 3MXM 3-Zone 24,000 BTU (9k+9k+15k)

Daikin · Multi-Zone

~$6,062

Daikin 3MXM 3-Zone 24,000 BTU (9k+9k+15k)

Moderate-climate homes wanting a premium-brand 3-room system with the longest warranty in the class.

BTU/h
24k
Volts
230
Zones
3
SEER2
21
HSPF2
10
Heats to
5°F

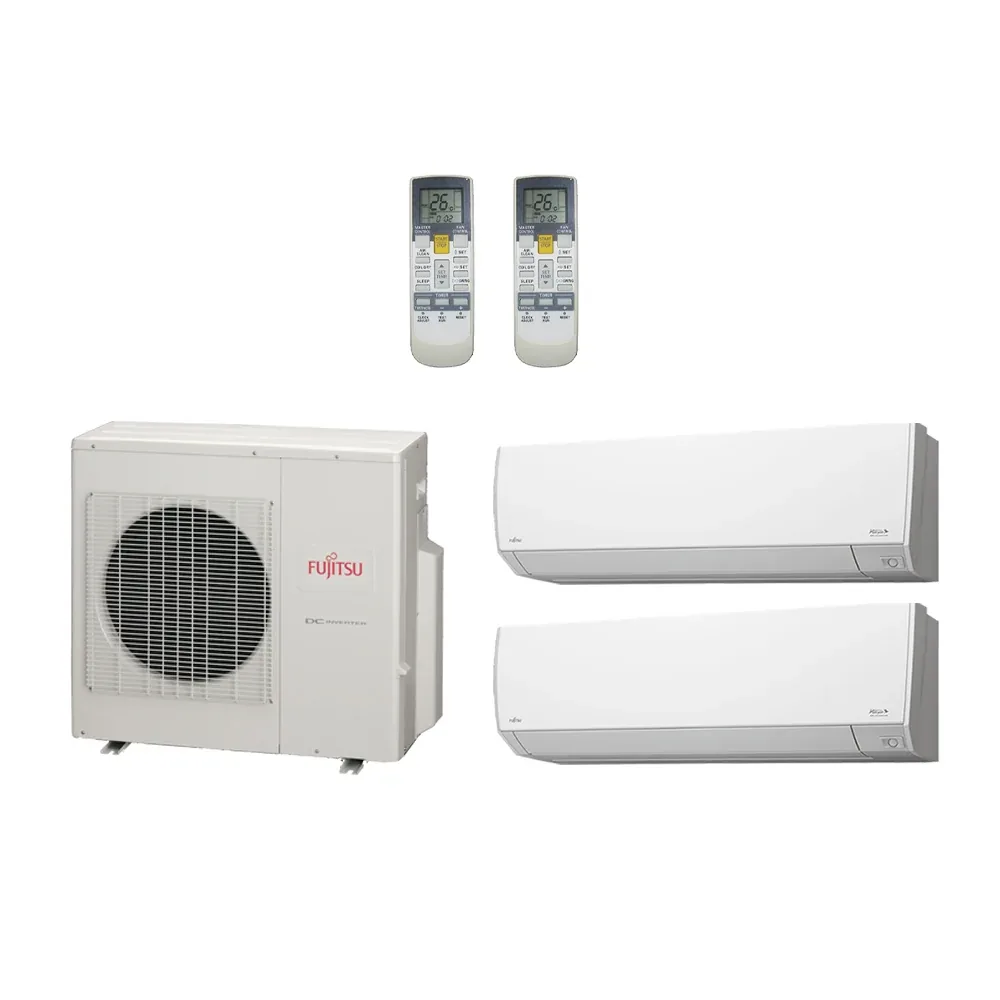

Fujitsu AOU24RLXFZ 24,000 BTU 2-3 Zone MultiDiscontinued

Fujitsu General · Multi-Zone

~$2,582

Fujitsu AOU24RLXFZ 24,000 BTU 2-3 Zone Multi

Two- or three-room retrofits in moderate climates where an installer-supported Fujitsu quote comes in below the Mitsubishi equivalent.

BTU/h
24k
Volts
230
Zones
3
SEER2
18
HSPF2
9.5
Heats to
5°F

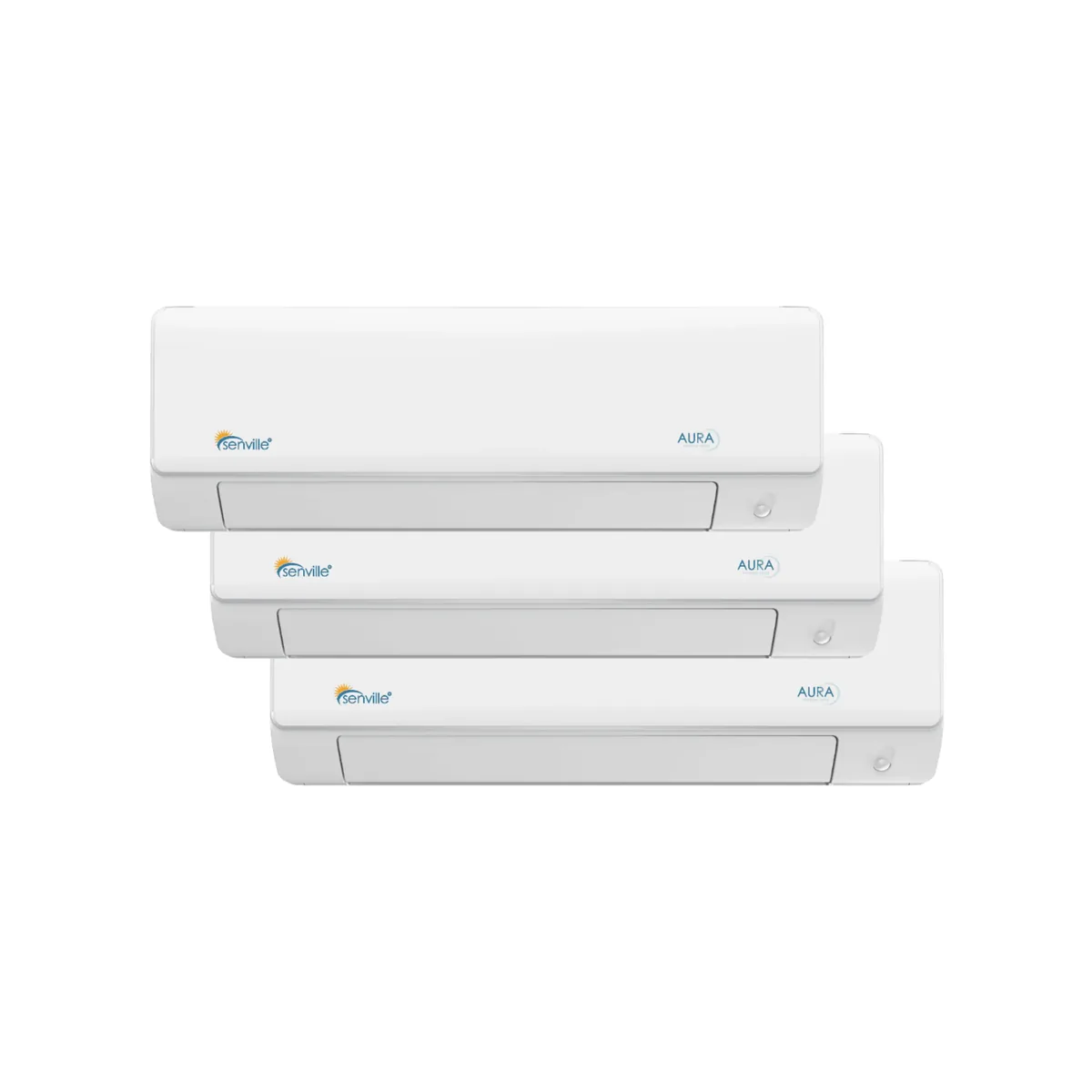

Senville AURA 27,000 BTU 3-Zone (9k+9k+9k)
