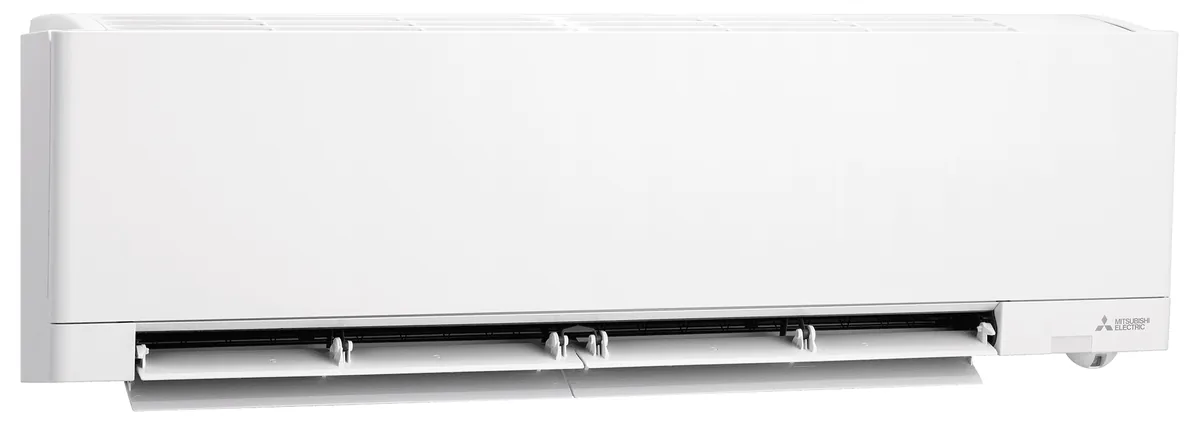

Mitsubishi MSZ-FX18NL Hyper-Heat 18,000 BTU

Mitsubishi Electric · Single-Zone

Mitsubishi MSZ-FX18NL Hyper-Heat 18,000 BTU

MSZ-FX18NL / MUZ-FX18NLHZ

~$4,187approximate retailer price at last check, equipment only

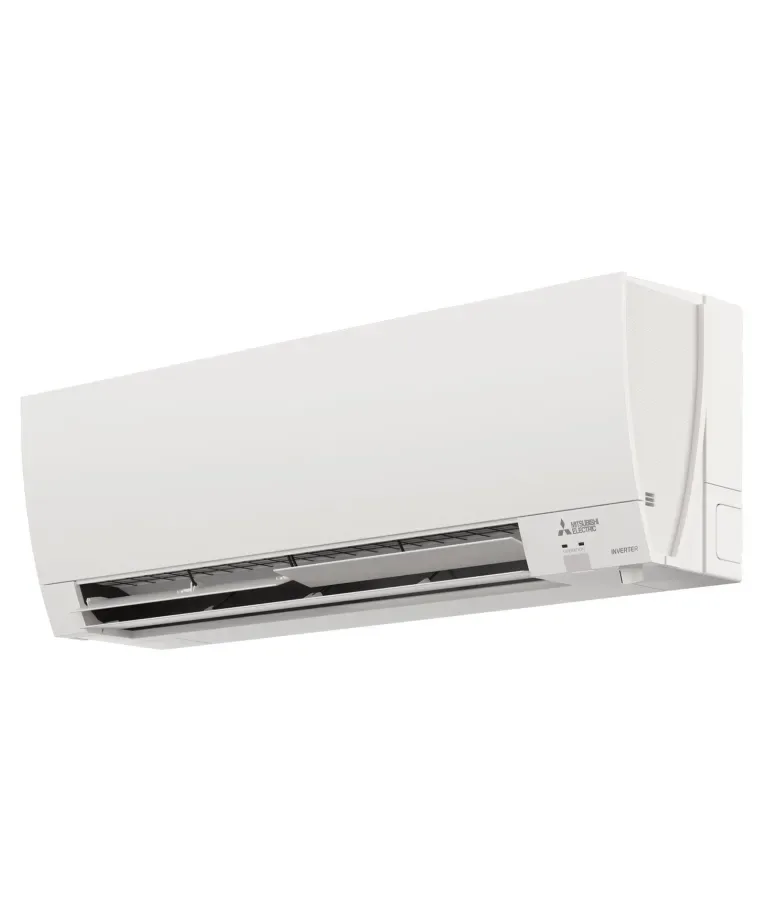

Replaces the Mitsubishi MSZ-FS18NA Hyper-Heat 18,000 BTU.

BTU/h
18k
Volts
230
Zones
1
SEER2
25.5
HSPF2
11.1
Heats to
-22°F
Refrig.
R-454B
Covers
750 ft²
Wi-Fi
Built in

Best forLarge open rooms or small open-plan houses in cold climates where one head has to be the main heat source.

Overview

The FX18 closes most of the cooling gap the old MSZ-FS18NA had to its 12k sibling: 25.5 SEER2, up from 21. HSPF2 is 11.1 against the FS18's 10.3. Mitsubishi's distributors list the MUZ-FX18NLHZ as the replacement for the MUZ-FS18NAH, so this is the R-454B successor to that unit. Winter output barely changed. NEEP's cold-climate listing puts maximum heat at 23,600 BTU at 5°F, well above the 17,000 BTU it's rated for at 47°F, at a COP of 2.06; the FS18 was listed at 23,000 BTU and 2.07. Mitsubishi guarantees heating down to -22°F, where the FS18 was rated to -13°F, and the outdoor unit keeps a base-pan heater for defrost meltwater. Wi-Fi now comes in the head. At about $4,200 for the system it costs close to $1,000 more than the FS18 did, and at that price two smaller heads deserve a quote, especially in a house with closed-off rooms.

  • 23,600 BTU max heat at 5°F (NEEP)
  • 25.5 SEER2, up from the FS18's 21
  • Built-in Wi-Fi, base-pan heater

Cold-weather output

At 5°F it makes more heat than its 47°F rating (139%), according to the certified NEEP listing for this pairing. Mitsubishi Electric rates it to keep running down to -22°F.

47°F32°F17°F5°F-13°F-22°F17.0k23.6kmaker's floor -22°F
COP at 5°F
2.06
Refrigerant
R-454B
AHRI cert.
215611128
ENERGY STAR cold climate
Yes

Pairing: MUZ-FX18NLHZ with MSZ-FX18NL. From NEEP's ccASHP list; a different head or condenser posts different numbers.

Strengths and catches

Strengths

  • +NEEP lists 23,600 BTU of heat at 5°F against a 17,000 BTU rating at 47°F
  • +25.5 SEER2 / 11.1 HSPF2, against 21 / 10.3 for the FS18NA it replaces
  • +Heating guaranteed to -22°F, with a base-pan heater on the outdoor unit
  • +Wi-Fi built in (Comfort app), so no separate adapter purchase

Catches

  • −Around $4,200 for the equipment, close to $1,000 more than the FS18 sold for
  • −One large head heats closed-off rooms poorly; it needs an open floor plan
  • −Still well short of the FX12's 29.9 SEER2
  • −Extended warranty depends on a licensed or Diamond Contractor install plus registration
  • −R-454B (A2L) needs an installer with the right training and recovery equipment

What owners report

Covers the Mitsubishi M-Series wall units (FS/FX, GL/GX, EX, WX) line as a whole, summarised from 440 owner discussion threads, with the replies on the 12 most-discussed.

Most buyers pick Mitsubishi wall units for reliability and installer support, and the owners who are happy tend to stay happy. A Vermont household on its fourth winter with an 18k and a 12k cold-climate pair says the units kept running through a -16F morning and kept the house mostly warm. Another owner's 3/4-ton unit iced into a block in a storm and was still blowing 110F air. Others describe single heads that have run for years without trouble. Owners also say the units feel plain next to cheaper brands: no factory Wi-Fi, no coil dry-out after cooling, and no temperature display on the head.

The complaints are mostly about control, not hardware. The sensor sits in the head, high on the wall and near the warm air leaving it. One reply puts it at 4-6 degrees above the room, with a 2-3 degree swing before the unit reacts. In winter that shows up as a head blowing lukewarm air on low fan while the room stays cold. On multi-zone systems, small bedroom heads such as a GX09 can push a room far past the setpoint: one owner set 54F and got 74F, with 125F air coming out. One owner who wired a home-built external temperature sensor into the system says it halved the energy use, though another with the iSee sensor still had cool air in sub-zero weather. Running costs at New England electricity rates shock some owners, and a few multi-zone systems needed repeated service calls. One Boston household lost three compressors and two control boards in four years on a five-head system.

The evidence fits cold-climate buyers who want a dealer-installed system and plan to sort out temperature sensing early, or to size outdoor units 1:1 so small bedroom heads are not overdriven. Owners agree that install quality and sizing matter as much as the brand.

What owners like

  • +Cold-climate wall units keep heating in deep cold: a Vermont owner's 18k and 12k pair kept the house mostly warm on a -16F morning
  • +Copes with abuse: one 3/4-ton unit iced over in a storm was still holding its basement at setpoint with 110F air at the head, and owners clear ice by running cooling mode briefly or rinsing with warm water
  • +Bought for reliability, and several owners report years of trouble-free running, from a single bedroom head since 2021 to a whole house converted to heat pumps
  • +Responds well to better temperature sensing: one owner who wired a home-built external temperature sensor into the system says it cut energy use roughly in half
  • +Dry mode wins praise from one humid-summer owner, who finds a bedroom cooler and more comfortable than in cooling mode
  • +Authorized installers are easy to find, while buyers in some areas cannot find a local dealer for Gree or MrCool

Common complaints

  • −The sensor in the head reads warm, which one reply puts at 4-6 degrees above the room with a 2-3 degree swing, so in cold weather a head can sit on low fan blowing lukewarm air
  • −On multi-zone systems, small bedroom heads overheat their rooms: a GX09 set to 54F held 74F, and others report bedrooms at 73-75F while the main floor struggles to reach 68F
  • −Some heads will not ramp up when the room falls behind: an FS18 stayed near 1.5-2kW until the fan went to high, and an FX12 left a living room at 61F on a -2F day
  • −Expensive to buy and run: one quote worked out to about $3,440 per head installed, and a well-insulated 1,050 sq ft house saw a $650 January bill at Massachusetts rates
  • −After a cooling cycle the wet coil puts moisture back into the room, and one owner says Dry mode did not help, so they also run a dehumidifier
  • −Plain feature set: no factory Wi-Fi, no coil dry-out, no temperature readout on the head, and the remote will not set heat below 61F (the app goes down to 51F)
  • −Failures do happen: one five-head multi-zone system lost three compressors and two control boards in four years, and another needed seven service calls in its first winter

Questions buyers ask

What replaced the MSZ-FS18NA?+

This unit. Mitsubishi's distributors list the MUZ-FX18NLHZ outdoor unit as replacing the MUZ-FS18NAH-U1, and the MSZ-FX18NL is the matching wall head. The FS18 was R-410A and is now sold only as leftover inventory.

Will one FX18 heat a whole small house in winter?+

If the house is open-plan, it has the output. NEEP lists 23,600 BTU/h of maximum heat at 5°F, which is more than its 17,000 BTU/h rating at 47°F. The limit is layout. A single wall head can't push heat around corners into bedrooms with closed doors, so divided floor plans usually do better with two smaller heads.

Is it more efficient than the FS18?+

Yes, noticeably. It is rated 25.5 SEER2 and 11.1 HSPF2 against the FS18's 21 and 10.3. The cooling number is where the gain is biggest. It still trails the 12k FX, which is normal: bigger capacity in a similar chassis costs some efficiency.

Is it worth the price jump over a leftover FS18?+

It's closer than the other FX sizes. The FX18 lists around $4,200 for the system, close to $1,000 above what the FS18 sold for, and in cold weather the two are nearly even: NEEP lists the FS18 at 23,000 BTU/h at 5°F against the FX18's 23,600. The extra money mostly buys cooling efficiency (25.5 SEER2 against 21), a little heating efficiency (11.1 HSPF2 against 10.3), the -22°F rating and built-in Wi-Fi. Leftover FS18 stock is still legal to install in most states: an EPA rule finalized in May 2026 lets pre-2025 R-410A splits be installed until inventory runs out, though New York and Washington keep their own deadlines. In a heating-dominated climate, a well-discounted FS18 gives up very little.

Does it work in heavy snow?+

It is built for it. Mitsubishi guarantees heating operation to -22°F and the outdoor unit includes a base-pan heater so defrost water doesn't freeze into the pan. Mount it on a stand or bracket above your typical snow depth so the coil can breathe and drain.
