MRCOOL DIY 5th Gen E Star 12,000 BTU

MRCOOL · Single-Zone DIY

MRCOOL DIY 5th Gen E Star 12,000 BTU

DIY-12-HP-WM-115D25-O / DIY-12-HP-C-115D25-O

~$2,370approximate retailer price at last check, equipment only

Check price on Amazon

Paid link: this site earns a commission on qualifying purchases. The price on Amazon may differ.

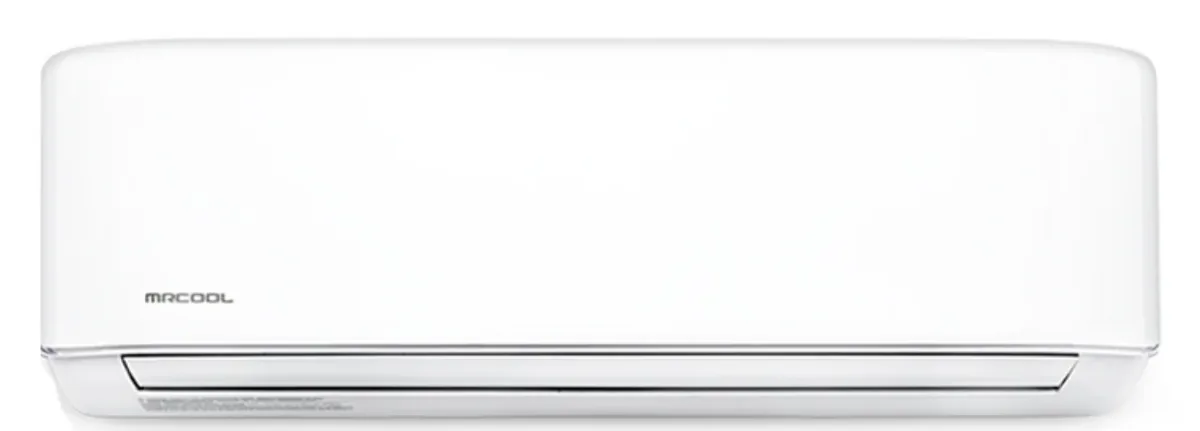

Replaces the MRCOOL DIY 4th Gen 12,000 BTU.

BTU/h
12k
Volts
115
Zones
1
SEER2
23.5
HSPF2
10.2
Heats to
-13°F
Refrig.
R-454B
Covers
500 ft²
Wi-Fi
Built in

Best forA 350-500 sq ft bedroom, office, or garage where only a 115V circuit is practical and you want the DIY install.

Overview

Like the 4th Gen before it, the 5th Gen 12k runs on a 115V circuit, so most panels can feed it without a 240V run, and it installs the same way: precharged quick-connect lineset, half a day with hand tools. What changed is underneath. The refrigerant is now R-454B, efficiency rose from the 4th Gen's 22.5 SEER2 / 9.0 HSPF2 to 23.5 / 10.2 on the AHRI-certified pairing, and the system is on the NEEP cold-climate list at 8,400 BTU of maximum heat at 5°F (about 70% of its 12,000 BTU rating) with a COP of 2.09 there. That 5°F figure is the honest way to read the '-13°F' operating floor: it still runs that cold, but a room sized right on the 47°F rating will come up short on the coldest nights. The price went the wrong way: about $2,370, where the 4th Gen sold for $1,700, though HVAC Pro Sales has run it near $2,060 in a blowout sale. It's also new enough that there is little long-term owner history yet, so the 4th Gen's control-board track record is the best guide to what MRCOOL hardware does in years three to five.

  • Precharged R-454B quick-connect lineset
  • Still runs on a 115V circuit
  • 8,400 BTU max heat at 5°F (NEEP)

Cold-weather output

At 5°F it still makes 70% of its rated heat, according to the certified NEEP listing for this pairing. MRCOOL rates it to keep running down to -13°F.

47°F32°F17°F5°F-13°F12.0k8.4kmaker's floor -13°F
COP at 5°F
2.09
Refrigerant
R-454B
AHRI cert.
216032544
ENERGY STAR cold climate
Yes

Pairing: DIY-12-HP-C-115D25-O with DIY-12-HP-WMAH-115D25-O. From NEEP's ccASHP list; a different head or condenser posts different numbers.

Strengths and catches

Strengths

  • +Still the only 12k in MRCOOL's DIY line that runs on 115V, so most panels can feed it without a 240V run
  • +AHRI-certified 23.5 SEER2 / 10.2 HSPF2 for this pairing, up from 22.5 / 9.0 on the 4th Gen
  • +NEEP-listed cold-climate unit holding 8,400 BTU at 5°F, with an Energy Star cold-climate flag
  • +DIYPRO armored cable comes in the box, so the outdoor wiring run doesn't need separate conduit
  • +Lineset options run from 25 ft to 75 ft, all precharged, which opens layouts the fixed 16-ft Easy Pro can't reach

Catches

  • −Roughly $670 more than the 4th Gen sold for, and several hundred over pro-install 12k units with similar ratings
  • −Leak sensor can throw a fault from curing spray foam near the air handler, per MRCOOL's own install notes
  • −None of the 4th Gen linesets, couplers, or spare parts carry over
  • −Too new for a real failure-rate picture; the DIY line's history of control-board repairs is the closest guide

What owners report

Covers the MRCOOL DIY (4th and 5th Gen) line as a whole, summarised from 75 owner discussion threads, with the replies on the 12 most-discussed.

Owners who have lived with MRCOOL DIY systems mostly talk about them as the cheap, do-it-yourself way to get a heat pump into a garage, shed, outbuilding or a few rooms. Several owners describe the install as easy: one dual-zone 18k owner put the cost at about a third of a comparable installed Mitsubishi, another says it saved them $9,200 in labor, and an owner who has installed about five in a garage and individual rooms says they have been working well so far and is considering another. A common attitude is that if the unit dies in seven years they will buy another and still be ahead. A 5th Gen 18k owner running it alongside an oil boiler ran the numbers through a fuel-cost calculator and concluded the heat pump is cheaper than oil at their prices. Most of the specific multi-zone ownership stories come from 4th Gen systems (27k and 36k outdoor units with 9k to 24k heads).

The problems owners bring back are leaks and multi-zone quirks. One 27k multi-zone owner had a good first six months, then heads freezing over, eventually weekly, which turned out to be a refrigerant leak; another had a leaking low-pressure switch that led to a compressor warranty swap and left them unsure how to reconnect the sealed line set without letting air in. On a two-zone system, an idle head and its attic line set sweated and dripped into the house while the other zone ran, and heads piped through an attic need a condensate pump that one owner could not find listed for the small 9k wall unit. In the cold, a 24k garage owner who calls the install poorly done says it does not come close to its published efficiency, a reply says it works only a little below zero, and another points out the ductless DIY line is not a hyper-heat unit. The newer DIY Easy Pro on R-454B needs a 7.3 ft minimum room height, and MRCOOL told one buyer not to go below it in a 7 ft basement.

By the evidence, it suits handy owners conditioning a garage, shop, outbuilding or a few rooms who value the precharged quick-connect line sets over a long service life. Owners who have installed both kinds say a standard flare-and-vacuum mini-split is only a little more work and more flexible, and a couple would skip the quick-connect next time. Expect that local techs may not want to touch it.

What owners like

  • +Install is within reach of a handy owner: precharged quick-connect line sets mean no vacuum pump, and one owner who has done five says the main rule is to go slow and not cross-thread the fittings
  • +Owners report a fraction of installed-system cost, with one dual-zone 18k owner putting it at about a third of a comparable installed Mitsubishi and another saying it saved $9,200 in labor
  • +One owner who has installed about five, in a garage and individual rooms, says they have all been working well so far and is weighing another
  • +A 5th Gen 18k owner running it next to an oil boiler worked out with a fuel-cost calculator that the heat pump is cheaper than oil at their electric and fuel prices
  • +A 4th Gen 27k outdoor unit ran for years with only a single 18k head attached, so owners can start with fewer heads than the condenser allows
  • +Sold off the shelf at Costco, Home Depot and Lowe's, so buyers can get one without going through a dealer

Common complaints

  • −Leaks show up after the first months: one 27k multi-zone had heads freezing over, eventually weekly, from a refrigerant leak, and another leaked at the low-pressure switch and needed a compressor swap
  • −After a warranty compressor swap, owners are left unsure how to reconnect a sealed, precharged line set without letting air into the indoor side
  • −On a multi-zone system an idle head and its attic line set can sweat and drip into the house while another zone runs
  • −A 9k 4th Gen wall head piped through an attic needs a condensate pump, and its owner could not find one listed as fitting the small unit
  • −Cold-weather output falls off: a 24k garage owner says it does not come close to its published efficiency, a reply says it works only a little below zero, and others note the ductless DIY units are not hyper-heat models
  • −One buyer could not find the quick-connect adapters for sale separately, or any information on them
  • −HVAC techs often do not want to work on DIY units, and buyers question whether parts will be available later
  • −The newer R-454B DIY Easy Pro requires a 7.3 ft minimum room height, and MRCOOL advised one buyer against installing it in a 7 ft basement

Questions buyers ask

Is the 5th Gen install any harder than the 4th Gen?+

Not meaningfully. It is still a precharged Quick Connect lineset with no vacuum pump, and the 115V circuit requirement is the same. The one practical difference you'll notice is the included DIYPRO armored cable, which saves you buying conduit for the outdoor wiring run.

Should I buy a leftover 4th Gen on clearance instead?+

Not if you'll heat with it. A leftover 4th Gen saves about $670 against the 5th Gen's $2,370 list (less against the roughly $2,060 sale price), but NEEP lists it at 6,400 BTU at 5°F against the 5th Gen's 8,400, and it lacks the Energy Star cold-climate flag many rebate programs check. For a cooling-only garage or office the discount is fair. Under the EPA's May 2026 rule, R-410A split systems built before 2025 can still be installed until inventory runs out (New York and Washington keep their own deadlines), so new-old stock isn't illegal to put in. Check that the seller's unit still gets MRCOOL's full warranty when registered.

How much heat does it really make when it's 5°F outside?+

NEEP's cold-climate listing for this exact pairing shows a maximum of 8,400 BTU at 5°F, about 70% of the 12,000 BTU rating, at a COP of 2.09. It keeps running down to -13°F, but output keeps falling, so a room sized tightly for 12,000 BTU will need backup heat during real cold snaps.

Do I need a 240V circuit?+

No. The 12k runs on 115V; MRCOOL's spec calls for a dedicated circuit with an 18A minimum circuit ampacity and a 20A maximum fuse. The 18k and larger sizes all need 208/230V.

Can I reuse my old MRCOOL lineset or add a longer one later?+

Not from a 4th Gen; MRCOOL says linesets and components are not cross-compatible between the generations, and the 5th Gen lines are charged with R-454B. Within the 5th Gen family, precharged lines come in lengths up to 75 ft, and MRCOOL sells couplers for joining them.
